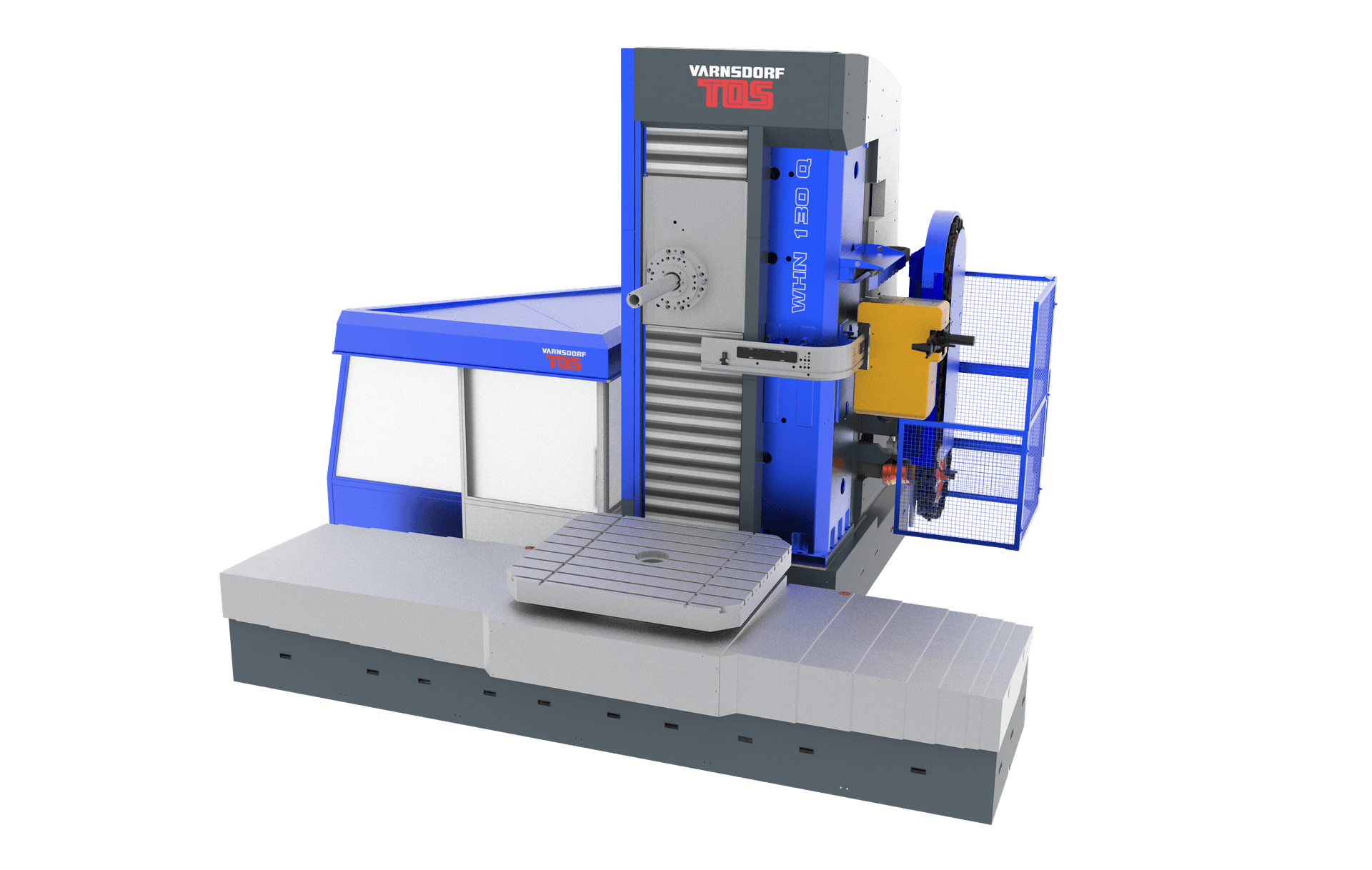

WHN 110/130

Horizontal table-type boring machines

Horizontal milling and boring machines WHN 110/130 are strong, powerful representatives of the advanced generation of
TOS VARNSDORF a.s. machines, meeting the needs of modern progressive technology.

The machines are manufactured in a design with a cross arrangement of beds, with a longitudinally adjustable column, an extending spindle and a laterally adjustable rotary table.

View detailed technical parameters

  • HIGHLY VERSATILE
  • USE OF POSITIONING MILLING HEADS
  • MACHINING OF ANGLED SURFACES
  • APPLICATION OF INTERPOLATED TURNING



MACHINE CONFIGURATION

  • WHN 110 - base version of the machine with a main spindle diameter of 112 mm.
  • WHN 130 - base version of the machine with a main spindle diameter of 130 mm.
  • machine version with automatic tool change
  • version with automatic palette change
  • variable design of the table clamping surface





A collection of unique technical solutions and special functions

Job management

Job management

The Job management function displays an overview of work orders and operations directly on the control panel of the machine tool, which is connected to the company's ERP system (including a desktop application for the foremen of the production hall).

Remote diagnostics

Remote diagnostics

The technical means of our service is the possibility of remote connection using an Internet connection to the machine at the customer's place (we have the relevant software in the company and after enabling the service on the customer's side, we are able to connect to the machine remotely).

TOScontrol

TOScontrol

TOScontrol is a set of applications and functions for advanced machine management.
Easy head calibration

Easy head calibration

This function automatically measures the head rotational axes using the touch probe cycle. To measure the rotary axes, a calibration ball is fixed anywhere on the machine table, which is detected using a touch probe. Based on the measured values, the system detects spatial errors resulting from axis tilting. The cycle…
Work volume monitoring

Work volume monitoring

The system allows the image from one or more cameras to be displayed on the machine control panel screen.
Headstock balancing

Headstock balancing

On TOS Varnsdorf machines the weight of the headstock is balanced (depending on the machine type) by means of counterweights inside the column or by means of a hydromechanical system.

Integrated metrological system

Integrated metrological system

Integration of a metrology system (3D coordinate measuring machine) with a touch probe into the machine tool, thanks to which it is possible to precisely measure workpieces directly on the machine.
