Milling heads
HUIL 50
The universal automatically indexed HUIL 50 milling head is based on the same concept as the HUI 50 milling head. This design of the head,
however, has more precise positioning and makes it possible to use significantly higher speed. The head is equipped with cooling channels to ensure its even cooling.
- number of axes: 2
- speed (rpm): 5,000
- power (kW): 25
- torque (Nm): 1,000
- weight (kg): 600
- positioning: index 1°
HUI 50
The HUI 50 milling head is automatically indexed in both planes by 2.5° and thus enables greater efficiency when turning the head spindle relative to the machine orthogonal coordinate system.
- number of axes: 2
- speed (rpm): 3,000
- power (kW): 32
- torque (Nm): 1,000
- weight (kg): 440
- positioning: index 2.5°

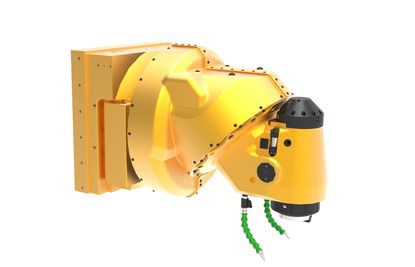

HUF 50
The universal continuously positioned HUF 50 head consists of three compactly connected basic parts with the possibility of their mutual rotation. The positioning
of the adjustable parts of the head is derived from the rotational movement of the machine spindle. Continuous positioning is ensured by means of servomotors, which enable rotation of the Hirth toothing and a subsequent step of 0.001° in both axes A and C.
- number of axes: 2
- speed (rpm): 3,000
- power (kW): 32
- torque (Nm): 1,000
- weight (kg): 610
- positioning: index 0.001°
HUIT 50
The universal automatically indexed HUIT 50 milling head is based on the same concept as the HUIL 50 milling head.
However, this head design is significantly more powerful and has a higher torque.
- number of axes: 2
- speed (rpm): 4,000
- power (kW): 35
- torque (Nm): 1,400
- weight (kg): 710
- positioning: index 1°
HUFT 50
The universal continuously positioned HUFT 50 milling head is based on the same concept as the HUF 50 milling head.
However, this head design is significantly more powerful and has a higher torque. The head is equipped with cooling channels that ensure its uniform cooling.
- number of axes: 2
- speed (rpm): 4,000
- power (kW): 35
- torque (Nm): 1,400
- weight (kg): 850
- positioning: index 0.001°
HOI 50
Orthogonal automatically indexed HOI 50 milling head consists of three basic joint parts, which can rotate in the A and C axes in order to achieve the general position of the head main spindle.
Positioning of the rotary parts is ensured by mechanical drive from the machine spindle and allows 180° positioning in the C axis, 180° in the A axis.
- number of axes: 2
- speed (rpm): 3,500
- power (kW): 37
- torque (Nm): 1,200
- weight (kg): 1,100
- positioning: index 1°

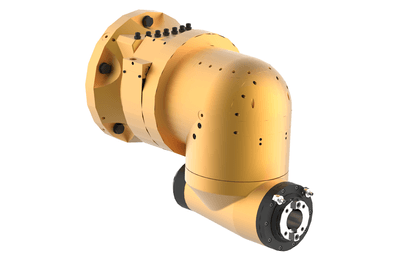

HOIL 50
The orthogonal automatically indexed HOIL 50 milling head is based on the same concept as the HOI 50 milling head. However, this head design is significantly lighter, with the weight of the head reduced by more than half.
- number of axes: 2
- speed (rpm): 3,500
- power (kW): 25
- torque (Nm): 1,000
- weight (kg): 450
- positioning: index 1°
HOIT 50
The orthogonal automatically indexed HOIT 50 milling head is based on the same concept as the HOI 50 milling head. However, this head design is significantly more powerful and has a higher torque. The head is especially designed for hydrostatic machines.
- number of axes: 2
- speed (rpm): 2,000
- power (kW): 50
- torque (Nm): 2,500
- weight (kg): 1,100
- positioning: index 1°
HV/V
The head consists of three compactly joint basic parts with the possibility of their mutual rotation in A and C axes. The mutual movement of these parts is ensured by separate servo drives, which enable continuous positioning in the full range of rotation and continuous movement of both axes during machining.
- number of axes: 2
- speed (rpm): 3,500
- power (kW): 22
- torque (Nm): 500
- weight (kg): 800
- positioning: continuous
HPFL 50
The head consists of three compactly connected basic parts, where two parts are rigidly connected and one part is rotatable in the A axis. The movement of this part is ensured by separate servo drives, which enable continuous control in the full range of rotation as well as smooth movement of the A-axis during machining.
- number of axes: 1
- speed (rpm): 5,000
- power (kW): 20
- torque (Nm): 1,000
- weight (kg): 550
- positioning: continuous
HPI 50
The head consists of two compactly connected basic parts with the possibility of their mutual rotation to achieve the necessary position of the main spindle of the head. The positioning of the rotating part is ensured by a mechanical drive from the machine spindle and enables ±185° positioning.
- number of axes: 1
- speed (rpm): 3,500
- power (kW): 37
- torque (Nm): 1,200
- weight (kg): 600
- positioning: index 1°
HPR 50
The manual rectangular HPR 50 head consists of two compactly connected basic parts with the possibility of their mutual rotation to achieve the required position of the main spindle of the head.
The adjustment angles have an increment of 0.1° on the perimeter scales equipped with a vernier.
- number of axes: 1
- speed (rpm): 3000
- power (kW): 25
- torque (Nm): 1,200
- positioning: manual
- weight (kg): 200
HUR 50
The universal manually positioned HUR 50 head consists of three compactly connected basic parts with the possibility of their mutual rotation to achieve the required general position of the main spindle of the head. Adjustment angles are readable in 0.1° increments on perimeter scales equipped with a vernier. For setting the parts of the head into a total of 8 basic positions (in the vertical joint plane 4x90°, in the oblique dividing plane 2x180° – setting pins are used).
- number of axes: 2
- speed (rpm): 3000
- power (kW): 20
- torque (Nm): 1000
- positioning: manual
- weight (kg): 300
UFP-40/50
Used as an accessory to the WH 10 and WHN 13 machines. It is suitable for processing surfaces under various angles parallel to one of the main axes of the machine. Manual clamping of the tool and the milling device to the machine.
- number of axes: 2
- speed (rpm): 600
- power (kW): 10
- torque (Nm): 1,000
- positioning: manual
- weight (kg): 200
